Product Description
Description

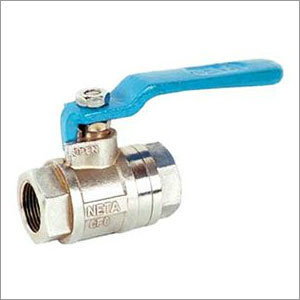

NETA Investment Casting S.S. (ASTM A351 Gr.CF8) Ball Valve
- Conforming to EN ISO 17292 Class-600
- Full Bore
- Two Piece Design with Stainless Steel (AISI - 304) Ball and Blow-out Proof Stem
- Teflon (PTFE) Body Seat Rings and Seals
- Lever Operated
- Screwed Female BSP Parallel / BSP Taper / NPT Threads Ends or Socket Weld Ends to ANSI-B 16.11
- Body Test Pressure : 1500 PSIG Hyd.
- Seat Test Pressure : 1000 PSIG Hyd., 80 PSIG Air
| Part | Nos. | Material | Specification |
| Stem | 1 | 18/8 Cr./ Ni S.S | AISI-304 |
| Lever nut | 2 | 18/8 Cr./ Ni S.S | AISI-304 |
| Lever | 1 | M.I | IS: 2108 Gr. BM290 |
| Gland | 1 | 18/8 Cr./ Ni S.S | AISI-304 |
| Galnd packing ring |
| Teflon (PTFE) |
|
| Stem seal | 1 | Teflon (PTFE) |
|
| Body seat ring | 2 | Teflon (PTFE) |
|
| Ball | 1 | 18/8 Cr./ Ni S.S | AISI-304 |
| Body | 1 | 18/8 Cr./ Ni S.S | ASTMA 351 Gr. CF8 |
| Body connector | 1 | 18/8 Cr./ Ni S.S | ASTMA 351 Gr. CF8 |
Dimension
| Nominal size | A ± 1.5 | B | C | D |
| 15 | 64 | 1/2 | 106 | 47 |
| 20 | 75 | 3/4 | 106 | 52 |
| 25 | 85 | 1 | 130 | 60 |
| 32 | 96 | 1.1/4 | 170 | 80 |
| 40 | 106 | 1.1/2 | 210 | 87 |
| 50 | 126 | 2 | 225 | 98 |
