Gun Metal Main Cock (Plug Type)
Product Details:
X
Product Description
Description

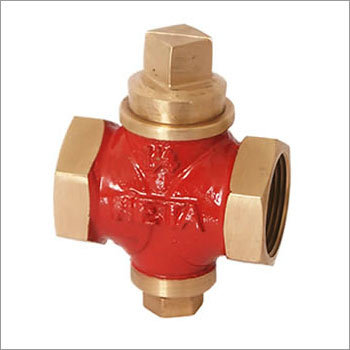

NETA Gun Metal Main Cock (Plug Type)
- Standard Pattern
- Screwed Female BSP Parallel Ends
- Body Tested to 300 lbs/In² Hyd.
- Plug Tested to 150 lbs/In² Hyd.
| Part | Nos. | Material | Specification |
| Plug | 1 | Gun metal | IS: 318 Gr. LTB2 |
| Body | 1 | Gun metal | IS: 318 Gr. LTB2 |
| Washer | 1 | Gun metal | IS: 318 Gr. LTB2 |
| Spring washer | 1 | Spring steel |
|
| Nut | 1 | Brass | IS: 6912 Gr. FLB |
Dimension
| Nominal size | L ± 1.5 | H App. | T |
| 15 | 55 | 43 | 1/2 |
| 20 | 62 | 48 | 3/4 |
| 25 | 71 | 52 | 1 |
| 32 | 84 | 65 | 1.1/4 |
| 40 | 105 | 75 | 1.1/2 |
| 50 | 136 | 93 | 2 |
