Cast Steel (ASTMA 216 Gr.WCB) Sleeve Packed
Product Details:
X
Product Description
Description

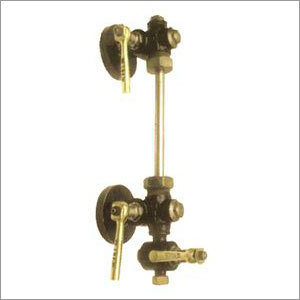

NETA Cast Steel (ASTMA 216 Gr. WCB) Sleeve Packed Water Level Gauge
- Flanged BS-10 Table 'J' Ends
- Automatic Shut Off Device in the Water Arm
- Left Hand Operated
- Max. BOP : 350 PSIG
- Max. Working Temperature : 454°C
- Test Pressure : 700 PSIG Hyd.
Suitable for steam and water service.
| Part | Nos. | Material | Specification |
| Top gauge arm side nut | 2 | 13% Cr. S.S | ASTMA 182 Gr. F6a/ AISI-410 |
| Gasket | 3 | CAF | IS: 2712 |
| Top gauge arm | 1 | Cast steel | ASTMA 216Gr. WCB |
| Cone | 2 | Rubber |
|
| Washer | 2 | 13% Cr. S.S | ASTMA 182 Gr. F6a/ AISI-410 |
| Glass tube | 1 | Glass |
|
| Gland nut | 2 | 13% Cr. S.S | ASTMA 182 Gr. F6a/ AISI-410 |
| Bottom gauge arm | 1 | Cast steel | ASTMA 216 Gr. F6a/ AISI-410 |
| Ball | 1 | 18/8% Cr./Ni S.S | ASTMA 216 Gr. WCB |
| Sleeve | 3 | Moulded asbestos | AISI-304 |
| Stem | 3 | 18/8% Cr./Ni S.S | ASTMA 182 Gr. F304/ AISI-304 |
Dimension
| Nominal size | L ± 1.5 | H App | W App |
| 15 | 106.5 | 114.3 | 15.9 |
| 20 | 107.5 | 114.3 | 15.9 |
