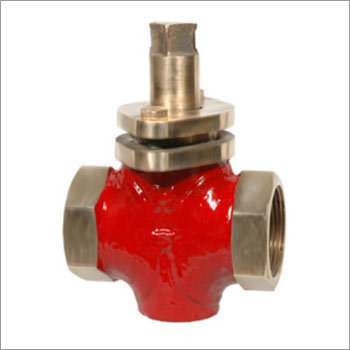

Gun Metal Gland Cock (Plug Type)
Product Details:
X
Product Description
Description
NETA Gun Metal Gland Cock (Plug Type)
- Standard Pattern
- Screwed Female BSP Parallel Ends
- Body Tested to 300 lbs/In² Hyd.
- Plug Tested to 150 lbs/In² Hyd.
| Part | Nos. | Material | Specification |
| Plug | 1 | Gun metal | IS: 318 Gr. LTB2 |
| Bolts | 2 | M.S | IS: 1367 |
| Gland | 1 | Gun metal | IS: 318 Gr. LTB2 |
| Gland packing |
| asbestos | IS: 4684 |
| Body | 1 | Gun metal | IS: 318 Gr. LTB2 |
Dimension
| Nominal size | L ± 1.5 | H App. | T |
| 15 | 55 | 58 | 1/2 |
| 20 | 68 | 70 | 3/4 |
| 25 | 77 | 73 | 1 |
| 32 | 100 | 98 | 1.1/4 |
| 40 | 105 | 98 | 1.1/2 |
| 50 | 120 | 98 | 2 |
| 65 | 180 | 165 | 2./12 |
