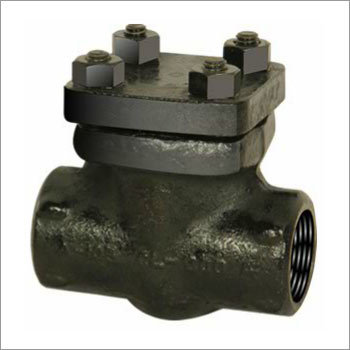

Forged Steel Horizontal Lift Check Valve - Reduced Bore
Product Details:
X
Product Description
Description
NETA Forged Steel Class-800 Horizontal Lift Check Valve (Reduced Bore) to BS:5352, Bolted Cover, 13% Cr. S.S. (AISI-410) Trim, Screwed Female or Socket Weld ends.
- Maximum Working Pressure : 2000 PSI at 38° C (100° F)
- Maximum Working Temperature : 538° C (1000° F) at 235 PSI
- Test Pressure : 3000 PSIG
- Body and Seat Test Pressure : 2000 PSIG
| Part | Nos. | Material | Specification |
| Studs | 4 | Alloy steel | ASTMA 193 Gr.B7 |
| Nuts | 4 | H.T Steel | ASTMA 194 Gr.2H |
| Cover | 1 | Forget steel | ASTMA-105 |
| Gasket | 1 | 18/8 Cr./ Ni S.S/ asbestor | AISI-304/ Spiral wound |
| Check valve seat | 1 | 13% Cr. S.S | ASTMA 182 Gr. F6a/ AISI-410 |
| Body seat ring | 1 | 13% Cr. S.S | ASTMA 182 Gr. F6a/ AISI-410 |
| Body | 1 | Forget steel | ASTMA-105 |
Dimension
| Nominal size | L | H | T | B | D (Min.) |
| 10 | 90 | 66 | 3/8 | 17.6/ 18.0 | 9.5 |
| 15 | 90 | 66 | 1/2 | 21.8/ 22.2 | 9.5 |
| 20 | 90 | 66 | 3/4 | 27.2/ 27.6 | 12.7 |
| 25 | 120 | 74 | 1 | 33.9/ 34.3 | 12.7 |
