Bronze Y Type Strainer
Product Details:
X
Product Description

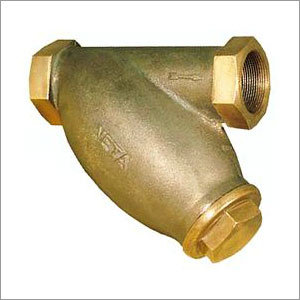

Bronze Y Type Strainer
Description
NETA Bronze 'Y' Type Strainer
- With Brass / Stainless Steel Screen
- Screwed Female Ends BSP Parallel Threads
Max. Working Pressure : 250 PSIG
Max. Working Temperature : 220°C
Test Pressure : 500 PSIG Hyd.
Suitable for steam and liquid service.
| Part | Nos | Material | Specification |
| Body | 1 | Bronze | BR 282[a][iv] Gr.B |
| Screen | 1 | 18/8% Cr./Ni S.S. | AISI - 304 |
| Cover | 1 | Bronze | BR 282[a][iv] Gr.B |
| Nominal Size | L + 1.5 | H App. | T |
| 15 | 70 | 53 | 1/2 |
| 20 | 98.5 | 73 | 3/4 |
| 25 | 127 | 92 | 1 |
| 32 | 156 | 140 | 1.1/4 |
| 40 | 178 | 146 | 1.1/2 |
| 50 | 222 | 165 | 2 |
