Cast Steel (ASTMA 216 Gr.WCB) Globe Valve
Product Details:
X
Product Description
Description

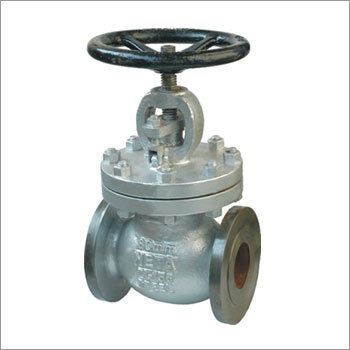

NETA Cast Steel (ASTMA 216 Gr. WCB) Globe Valve
- BS:1873 Class 150
- Outside Screw and Yoke Type
- Bolted Bonnet
- 13% Cr. Stainless Steel (AISI - 410 / ASTMA 182 Gr.F6a) Trim
- Flanged Ends to ANSI-B 16.5 Class 150
- Raised Face
- Drilled / Undrilled
- Body Test Pressure : 30 Bar Hyd.
- Seat Test Pressure : 22 Bar Hyd., 6.9 Bar Air
- Back Seat Test Pressure : 22 Bar Hyd.
Suitable for Petroleum, Petrochemical, Fresh Water, Steam and Vapour Service.
| Part | Nos. | Material | Specification |
| Hand wheel nut | 1 | M.S | IS: 1367 |
| Washer | 1 | M.S | IS: 226 |
| Hand wheel | 1 | M.I | IS 2108 Gr BM290 |
| Locking screw | 1 | M.S | IS: 1367 |
| Yoke bush | 1 | 13% Cr. S.S | ASTMA 182 Gr. F6a/ AISI-410 |
| Stem | 1 | 13% Cr. S.S | ASTMA 182 Gr. F6a/ AISI-410 |
| Gland flange | 1 | M.S | IS: 226 |
| Gland packing |
| Asbestos graphited |
|
| Bonnet | 1 | Cast steel | ASTMA 216 Gr. WCB |
| Gasket | 1 | CAF | IS: 2712 |
| Back seat bush | 1 | 13% Cr. S.S | ASTMA 182 Gr. F6a/ AISI-410 |
Dimension
| Nominal size | L ± 1.5 | H App | W App |
| 50 | 203 | 289 | 175 |
| 65 | 215.9 | 354 | 200 |
| 80 | 241.3 | 354 | 250 |
| 100 | 292.1 | 398 | 300 |
| 150 | 406.5 | 500 | 320 |
| 200 | 495.3 | 539 | 350 |
