Cast Steel (ASTMA 216 Gr.WCB) 'Y' Type Strainer
Product Details:
X
Product Description
Description

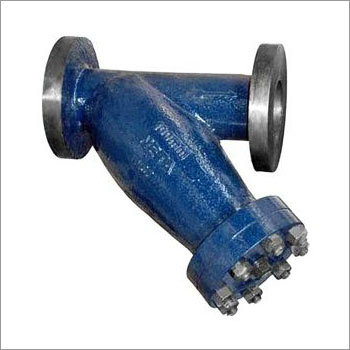

NETA Cast Steel (ASTMA 216 Gr. WCB) 'Y' Type Strainer
- With Stainless Steel (AISI - 304) Screen
- Flanged BS-10 Table 'J' Ends
- Max. Working Pressure : 350 PSIG
- Max. Working Temperature : 454°C
- Test Pressure : 700 PSIG Hyd.
Suitable for steam and liquid service.
| Part | Nos. | Material | Specification |
| Body | 1 | Cast steel | ASTMA 216 Gr. WCB |
| Screen | 1 | 18/8% Cr./Ni S.S | AISI-304 |
| Gasket | 1 | S.S Spring wound | AISI-304 |
| Cover | 1 | Cast steel | ASTMA 216 Gr. WCB |
| Studs and nuts | - | M.S / Alloy steel | IS: 1367/ ASTMA 193 Gr. B7 |
| Plug | 1 | M.S | IS: 226 |
Dimension
| Nominal size | L ± 1.5 | H App |
| 15 | 156 | 73 |
| 20 | 167 | 93 |
| 25 | 182 | 132 |
| 32 | 185 | 162 |
| 40 | 262 | 193 |
| 50 | 277 | 241 |
| 65 | 277 | 288 |
| 80 | 297 | 324 |
| 100 | 404 | 377 |
