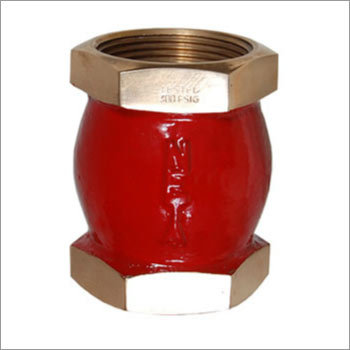

Gun Metal Vertical Check Valve
Product Details:
X
Product Description
Description

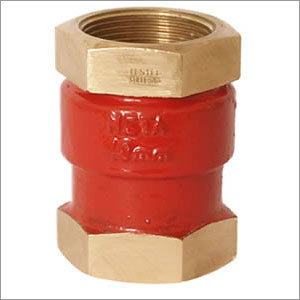

NETA Gun Metal Vertical Check Valve
- With Synthetic Rubber O-Ring & Phosphorous Bronze Spring
- Screwed Female BSP Parallel Ends
Hyd. Tested to 21 Kgf/cm²
| Part | Nos. | Material | Specification |
| Body | 1 | Gun metal | IS: 318 Gr. LTB2 |
| Check valve disc | 1 | Gun metal | IS: 318 Gr. LTB2 |
| O ring | 1 | Synthetic rubber |
|
| Spring | 1 | Ph. Bronze | IS: 7608 |
| Washer | 1 | Brass | IS: 6912 Gr. FLB |
| Nut | 1 | Brass | IS: 6912 Gr. FLB |
| Split pin | 1 | Brass | IS: 6912 Gr. FLB |
Dimension
| Nominal size | L ± 1.5 | T |
| 15 | 65 | 1/2 |
| 20 | 70 | 3/4 |
| 25 | 76 | 1 |
| 32 | 76 | 1.1/4 |
| 40 | 86 | 1.1/2 |
| 50 | 98 | 2 |
| 65 | 132 | 2./12 |
| 80 | 145 | 3 |
| 100 | 190 | 4 |
