Cast Steel (ASTMA 216 Gr.WCB) Horizontal Lift Non
Product Details:
X
Product Description
Description

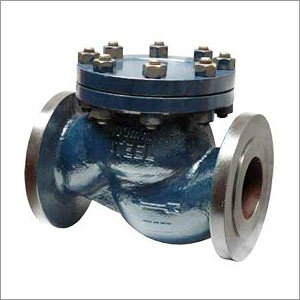

NETA Cast Steel (ASTMA 216 Gr. WCB) Horizontal Lift Check Valve
- Straight Pattern
- BS:5160
- Bolted Cover
- 13% Cr. Stainless Steel (ASTMA 182 Gr.F6a / AISI - 410) Trim
- Flanged Ends to BS:4504 Part 1 Table 40 / 1 / DIN 2545 PN40
- Raised Face
- Drilled / Undrilled
- Body Test Pressure : 60 Bar Gauge Hyd.
- Seat Test Pressure : 40 Bar Gauge Hyd.
Suitable for fresh water, steam, oil and vapour service.
| Part | Nos. | Material | Specification |
| Cover | 1 | Cast steel | ASTMA 216Gr. WCB |
| Studs and nuts |
| Alloy steel | ASTMA 193 Gr. B7 |
| Gasket | 1 | S.S (AISI-304)Spiral |
|
| Body disc | 1 | Cast steel | ASTMA 216 Gr.WCB |
| Disc | 1 | Cast steel | ASTMA 216 Gr.WCB |
| Disc ring | 1 | 13% Cr. S.S | ASTMA 182 Gr. F6a/ AISI-410 |
| Body seat ring |
| 13% Cr. S.S | ASTMA 182 Gr. F6a/ AISI-410 |
Dimension
| Nominal size | L | W |
| 15 | 130 | 75 |
| 20 | 150 | 78 |
| 25 | 160 | 91 |
| 32 | 180 | 96 |
| 40 | 200 | 113 |
| 50 | 230 | 128 |
| 65 | 290 | 152 |
| 80 | 310 | 180 |
| 100 | 350 | 195 |
| 125 | 400 | 214 |
| 150 | 480 | 274 |
| 200 | 600 | 320 |
