Bronze Y Type Strainer
Product Details:
X
Product Description
Description

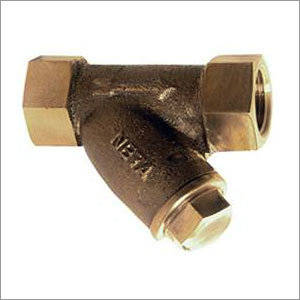

NETA Bronze 'Y' Type Strainer
- Standard Pattern with S.S. (AISI - 304) Screen
- Screwed Female Ends BSP Parallel Threads
- Suitable for Max. 150 PSIG Steam Working Pressure
Test Pressure : 300 PSIG Hyd.
| Part | Nos. | Material | Specification |
| Body | 1 | Gun metal | IS: 318 Gr. LTB2 |
| Screen | 1 | 18/8% Cr./ Ni S.S | AISI-304 |
| Cover | 1 | Gun metal | IS: 318 Gr. LTB2 |
Dimension
| Nominal size | L ± 1.5 | H App. | T |
| 15 | 73 | 53 | 1/2 |
| 20 | 98 | 55 | 3/4 |
| 25 | 118 | 75 | 1 |
| 32 | 150 | 100 | 1.1/4 |
| 40 | 168 | 120 | 1.1/2 |
| 50 | 201 | 150 | 2 |
