Leaded Tin Bronze (IS-318 Gr LTB2) Globe Valve
Product Details:
X
Product Description
Description

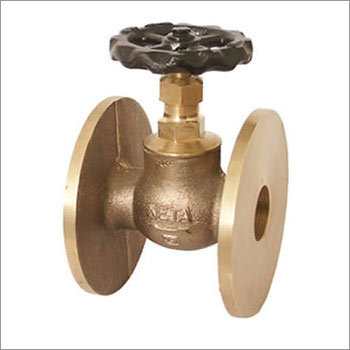

NETA Leaded Tin Bronze (IS:318 Gr. LTB2) Globe Valve
- IS:778/84 Amendment Nos. 1 & 2, Class 1
- Screwed in Bonnet
- Inside Screw
- Rising Stem
- Integral Seats
- Flanged Ends
- Handwheel Operated
- ISI Marked
Hydraulic Test Pressure
- Body : 1.5 MPa
- Seat : 1.0 MPa
- Back Seat : 1.0 MPa
| Part | Nos. | Material | Specification |
| Set screw / bolt | 1 | M.S | IS: 1367 |
| Washer | 1 | M.S | IS: 226 |
| Handwheel | 1 | C.I / M.S | IS: 210 Gr. FG200 |
| Stem | 1 | Brass | IS: 6912 Gr. FLB |
| Gland nut | 1 | Gun metal | IS: 318 Gr. LTB2 |
| Gland packing |
| Asbestos | IS: 4684 |
| Bonnet | 1 | Gun metal | IS: 318 Gr. LTB2 |
| Disc | 1 | Gun metal | IS: 318 Gr. LTB2 |
| Body | 1 | Gun metal | IS: 318 Gr. LTB2 |
| Gland | 1 | Gun metal | IS: 318 Gr. LTB2 |
| Disc nut | 1 | Gun metal | IS: 318 Gr. LTB2 |
Dimension
| Nominal size | L ± 1.5 | H. App. | W |
| 15 | 75 | 90 | 54 |
| 20 | 85 | 104 | 60 |
| 25 | 95 | 113 | 76 |
| 32 | 110 | 121 | 76 |
| 40 | 120 | 130 | 96 |
| 50 | 145 | 142 | 108 |
| 65 | 165 | 170 | 118 |
| 80 | 185 | 195 | 130 |
| 100 | 216 | 235 | 163 |
