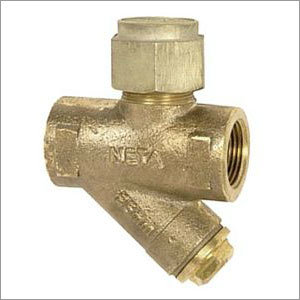

Bronze Thermodynamic Type Steam Trap
Product Details:
X
Product Description
Description
NETA Bronze Thermodynamic Type Steam Trap
- With S.S. (AISI - 410) Working Parts & S.S. (AISI - 304) Screen
- Screwed Female Ends BSP Parallel Threads
- Max. Working Pressure : 250 PSIG
- Test Pressure : 500 PSIG Hyd.
| Part | Nos. | Material | Specification |
| Top nut | 1 | M.S | IS: 226 |
| Upper disc | 1 | 13% Cr. S.S | AISI-410/ ASTMA 217 Gr. CA15 |
| Lower disc | 1 | 13% Cr. S.S | AISI-410/ ASTMA 217 Gr. CA15 |
| Body | 1 | Bronze | IS: 318 Gr. LTB2 |
| Screen | 1 | 18/8% Cr./Ni S.S | AISI - 304 |
| Screen retaining nut | 1 | Bronze | IS: 318 Gr. LTB2 |
Dimension
| Nominal size | L ± 1.5 | H | T |
| 15 | 76 | 54 | 1/2 |
| 20 | 79 | 56 | 3/4 |
| 25 | 91 | 61 | 1 |
