Cast Iron Gate Valve
Product Details:
Product Description
Description

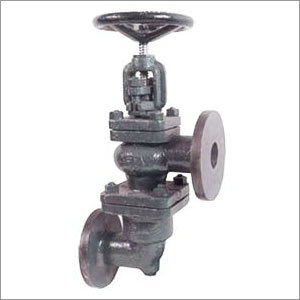

NETA Cast Iron Gate Valve
- BS:5150
- Outside Screw and Yoke Type
- Rising Stem
- Bronze Trim
- Flanged Ends to ANSI - B16.1 Class 125
- Flat Face
- Max. Working Pressure : 8.6 Bar
- Max. Working Temperature : 220°C
- Body Test Pressure : 24.1 Bar Hyd.
- Seat Test Pressure : 13.8 Bar Hyd.
- Back Seat Test Pressure : 24.1 Bar Hyd.
Suitable for steam and liquid service.
| Part | Nos. | Material | Specification |
| Hand wheel nut | 1 | Gun Metal | IS 318 Gr. LTB2 |
| Hand wheel | 1 | C.I | IS: 210 Gr. FG200 |
| Yoke sleeve locking nut | 1 | M.S | IS: 226 |
| Yoke sleeve | 1 | Gun Metal | IS 318 Gr. LTB2 |
| Gland | 1 | C.I | IS: 210 Gr. FG200 |
| Bonnet | 1 | C.I | IS: 210 Gr. FG200 |
| Studs and nuts | To | M.S | IS: 1367 |
| Gasket | 1 | CAF | IS: 2712 |
| Body | 1 | C.I | IS: 210 Gr. FG200 |
| Wedge | 1 | C.I | IS: 210 Gr. FG200 |
| Body seat ring | 2 | Gun metal | IS: 318 Gr. LTB2 |
| Wedge facing ring | 2 | Gun metal | IS: 318 Gr. LTB2 |
| Stem | 1 | Brass | IS: 6912 Gr. FLB |
| Eye bolts and nuts | 2 Each | M.S | IS: 1367 |
| Pin | 2 | M.S | IS: 226 |
| Gland packing |
| Graphited Asbestos | - |
| Back seat bush | 1 | 13% Cr. S.S | ASTMA 182 Gr. F6a/ AISI-410 |
Dimension
| Nominal size | L ± 1.5 | H App | W App |
| 40 | 165 | 273 | 190 |
| 50 | 178 | 363 | 195 |
| 65 | 190 | 380 | 195 |
| 80 | 203 | 410 | 200 |
| 100 | 229 | 504 | 250 |
| 125 | 254 | 535 | 305 |
| 150 | 267 | 670 | 356 |
| 200 | 292 | 856 | 406 |
