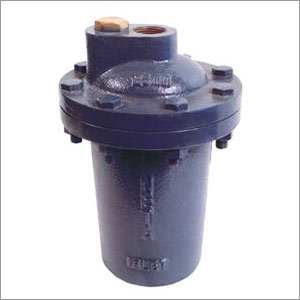

Cast Steel Vertical Inverted Bucket Type Steam Trap
Product Details:
X
Product Description
Description
NETA Cast Steel Vertical Inverted Bucket Type Steam Trap
- With 18/ 8% Cr/Ni (AISI - 304) Bucket
- Screwed Female Ends
- BSP Parallel Threads
- Max. Working Pressure : 17.5 Kg/cm²
- Max. Working Temperature : 240°C
- Test Pressure : 35 Kg/cm² Hyd.
Suitable for steam condensate
| Part | Nos. | Material | Specification |
| Plug | 1 | 13% Cr. S.S | ASTMA 182Gr. F6a/ AISI-410 |
| Cover | 1 | Cast steel | ASTMA216 Gr.WCB |
| Nuts and bolts for body | To | M.S | IS: 1367 |
| Valve seat | 1 | 13% Cr S.S | ASTMA 182Gr. F6a/AISI-410 |
| Valve | 1 | 18/8% Cr./Ni S.S | ASTMA 182Gr. F6a/AISI-410 |
| Valve locking washer | 1 | 18/8% Cr./Ni S.S | ASTMA 182Gr. F6a/AISI-410 |
| Bucket | 1 | 18/8% Cr./Ni S.S | ASTMA 182Gr. F6a/AISI-410 |
| Body | 1 | Cast steel | ASTMA216 Gr.WCB |
| Bucket ring | 1 | C.I | IBR 307 |
| Lever holder plate | 1 | 18/8% Cr./Ni S.S | ASTMA 182Gr. F304/ AISI-304 |
| Valve lever | 1 | 18/8% Cr./Ni S.S | ASTMA 182Gr. F304/ AISI-304 |
Dimension
| Nominal size | H Max. | T |
| 15 | 184 | 1/2 |
| 20 | 213 | 3/4 |
| 25 | 286 | 1 |
| 32 | 335 | 1 1/4 |
| 40 | 391 | 1 1/2 |
| 50 | 451 | 2 |
