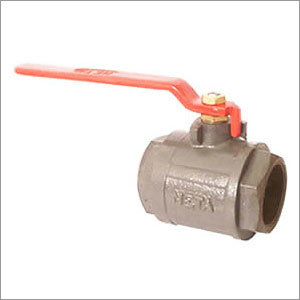

Cast Iron Ball Valve
Product Details:
X
Product Description
Description
NETA Cast Iron Ball Valve
- Full Bore
- Three Piece Design with Stainless Steel (AISI - 410) Ball and Blow-out Proof Stem
- Teflon (PTFE) Body Seat Rings and Seals
- Lever Operated
- Flanged Ends to BS-10 Table 'F'
Test Pressure : 300 PSIG Hyd.
| Part | Nos. | Material | Specification |
| Stem | 1 | 13% Cr. S.S | ASTMA 182 Gr.F6a/ AISI-410 |
| Level nut | 1 | M.S | IS: 1367 |
| Level | 1 | M.I | IS: 2108 Gr.BM290 |
| Gland | 1 | Brass | IS:6912 Gr. FLB |
| Gland packing |
| Teflon | PTFE |
| Gasket | 2 | CAF | IS: 2712 |
| Body seat ring | 2 | Teflon | PTFE |
| Ball | 1 | 13% Cr. S.S | ASTMA 182 Gr.F6a/ AISI-410 |
| Connector | 2 | C.I | IS: 210 Gr. FG200 |
| Studs | 4 | M.S | IS: 1367 |
| Nuts | 8 | M.S | IS: 1367 |
| Body | 1 | C.I | IS: 210 Gr. FG200 |
Dimension
| Nominal size | L ± 1.5 | H App | W App |
| 15 | 135 | 78 | 158 |
| 20 | 138 | 85 | 178 |
| 25 | 146 | 90 | 178 |
| 32 | 170 | 110 | 195 |
| 40 | 174 | 115 | 230 |
| 50 | 200 | 120 | 250 |
| 65 | 212 | 135 | 350 |
| 80 | 220 | 143 | 350 |
| 100 | 265 | 170 | 400 |
