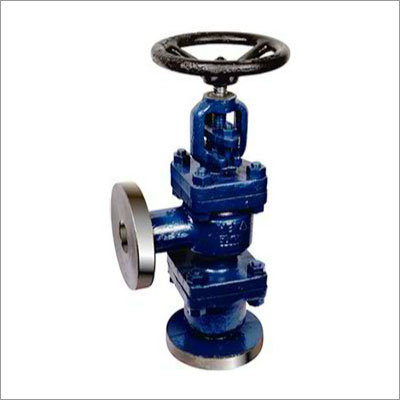

Cast Steel Accessible Feed Check Valve
Product Details:
X
Product Description
Description
NETA Cast Steel (ASTMA 216 Gr. WCB) Accessible Feed Check Valve without inspection branch
- Right Angle Pattern
- Outside Screw and Yoke Type
- Bolted Bonnet
- 13% Cr. Stainless Steel (AISI - 410 / ASTMA 182 Gr.F6a) Trim
- Straight / Curved Inlet
- Flanged Ends to BS-10 Table 'J'
- Max. BOP : 350 PSIG
- Max. Working Temperature : 454°C
- Test Pressure : 750 PSIG Hyd.
| Part | Nos. | Material | Specification |
| Hand wheel nut | 1 | M.S | IS: 1367 |
| Washer | 1 | M.S | IS 226 |
| Hand wheel | 1 | C.I | IS 210 Gr. Fr 200 |
| stem | 1 | 13% Cr. S.S | AISI-410 |
| Yoke bush | 1 | 13% Cr. S.S | AISI-410 |
| Gland flange | 1 | Cast steel | ASTMA 216 Gr. WCB |
| Bonnet | 1 | Cast steel | ASTMA 216 Gr. WCB |
| Gland | 1 | 13% Cr. S.S | AISI-410 |
| Gland packing |
| Graphites asbestos |
|
| Gasket | 1 | CAF | IS: 2712 |
| Back seat bush | 1 | 13% Cr. S.S | AISI-410 |
Dimension
| Nominal size | A ± 1.5 | B ± 1.5 | C | D ± | E | F | G | H( Min) |
| 40 | 140 | 108 | 40 | 140 | 195 | 236 | 175 | 22.2 |
| 50 | 152 | 121 | 50 | 165 | 213 | 261 | 175 | 25.4 |
| 65 | 133.5 | 133.5 | 65 | 184 | 240 | 288 | 175 | 25.4 |
| 80 | 165 | 165 | 80 | 203 | 265 | 313 | 200 | 32 |
