Leaded Tin Bronze (IS-318 Gr LTB2) Gate Valve
Product Details:
X
Product Description
Description

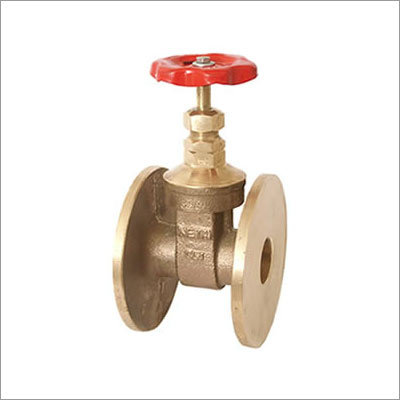

NETA Leaded Tin Bronze (IS:318 Gr. LTB2) Gate Valve
- IS:778/84 Amendment Nos. 1 & 2, Class 1
- Screwed in Bonnet
- Inside Screw
- Non-Rising Stem
- Integral Seats
- Solid Wedge
- Flanged Ends
- Handwheel Operated
- ISI marked
Hydraulic Test Pressure
- Body : 1.5 MPa
- Seat : 1.0 MPa
- Back Seat : 1.0 MPa
| Part | Nos. | Material | Specification |
| Set screw / bolt | 1 | M.S | IS: 1367 |
| Washer | 1 | M.S | IS: 226 |
| Handwheel | 1 | C.I | IS: 210 Gr. FG200 |
| Stem | 1 | Brass | IS: 6912 Gr. FLB |
| Gland nut | 1 | Gun metal | IS: 318 Gr. LTB2 |
| Gland | 1 | Gun metal | IS: 4684 |
| Gland packing |
| Asbestos | IS: 318 Gr. LTB2 |
| Stuffing box | 1 | Gun metal | IS: 318 Gr. LTB2 |
| Bonnet | 1 | Gun metal | IS: 318 Gr. LTB2 |
| Wedge | 1 | Gun metal | IS: 318 Gr. LTB2 |
| Body | 1 | Gun metal | IS: 318 Gr. LTB2 |
Dimension
| Nominal size | L ± 1.5 | H1. App. | W | T |
| 15 | 60 | 125 | 52 | 1/2 |
| 20 | 60 | 140 | 59 | 3/4 |
| 25 | 70 | 170 | 72 | 1 |
| 32 | 80 | 185 | 72 | 1.1/4 |
| 40 | 90 | 215 | 90 | 1.1/2 |
| 50 | 100 | 240 | 108 | 2 |
| 65 | 105 | 280 | 118 | 2.1/2 |
| 80 | 125 | 310 | 130 | 3 |
| 100 | 160 | 380 | 163 | 4 |
