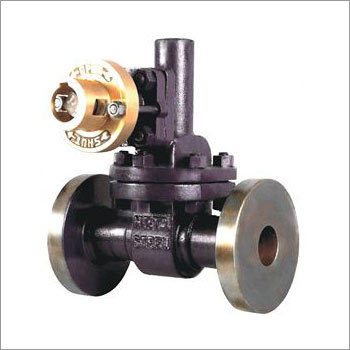

Cast Steel (ASTMA 216 Gr.WCB) Blow Off Valve
Product Details:
X
Product Description
DescriptionNETA Cast Steel (ASTMA 216 Gr. WCB) Parallel Slide Blow Off Valve
- With Monel / 18/ 8% Cr/Ni Stainless Steel (ASTMA 351 Gr.CF8) Working Parts
- Rack & Pinion Operated
- Flanged BS-10 Table 'J' Ends
- With Operating Key
- Max. BOP : 350 PSIG
- Max. Working Temperature : 454°C
- Test Pressure : 700 PSIG Hyd.
Suitable for steam and water service.
| Part | Nos. | Material | Specification |
| Bonnet | 1 | Cast steel | ASTMA 216Gr. WCB |
| Studs and nuts | 2 Each | M.S | IS: 1367 |
| Rack | 1 | 18/8% Cr./Ni S.S | ASTMA 351Gr. GFB |
| Body | 1 | Cast steel | ASTMA 216Gr. WCB |
| Gasket | 1 | S.S Spring wound | AISI-304 |
| Body seat ring | 2 | Monel | Ni. Cu Alloy |
| Male disc | 1 | Monel | Ni. Cu Alloy |
| Female disc | 1 | Monel | Ni. Cu Alloy |
| Spring | 1 | Spring steel | IBR 307 |
| Pinion | 1 | 18/8% Cr./Ni S.S | ASTMA 351Gr. GFB |
| Gland | 1 | Bronze | IBR 282 [a][iv] Gr.B |
Dimension
| Nominal size | L ± 1.5 | H App |
| 25 | 184 | 176 |
| 32 | 210 | 214 |
| 40 | 242 | 225 |
| 50 | 284 | 265 |
| 65 | 305 | 275 |
