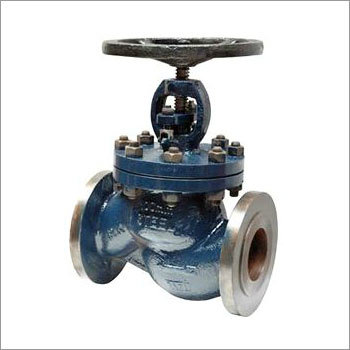

Cast Steel (ASTMA 216 Gr.WCB) Globe Valve

Part

Nos.

Material

Specification

Nut

1

M.S

IS: 1367

Washer

1

M.S

IS: 226

Hand wheel

1

C.I

IS: 210 Gr.FG200

Stem

1

13% Cr. S.S

ASTMA 182 Gr. F6a/ AISI-410

Yoke bush

1

13% Cr. S.S

ASTMA 182 Gr. F6a/ AISI-410

Gland flange

1

Carbon steel

IS: 226

Packing

Graphited asbestos

Bonnet

1

Cast steel

ASTMA 216 Gr. WCB

Gasket

1

S.S (AIS-304) Spiral

Back seat bush

1

13% Cr. S.S

ASTMA 182 Gr. F6a/ AISI-410

Disc ring

1

13% Cr. S.S

ASTMA 182 Gr. F6a/ AISI-410

Body

1

Cast steel

ASTMA 216 Gr. WCB

Gland

1

13% Cr. S.S

ASTMA 182 Gr. F6a/ AISI-410

Studs and nuts

To

Alloy steel

ASTMA 193 Gr B7

Ball

To

Carbon steel

Disc

1

Cast steel

ASTMA 216 Gr. WCB

Body seat ring

1

13% Cr. S.S

ASTMA 182 Gr. F6a/ AISI-410

Eye bolt

2

13% Cr. S.S

ASTMA 182 Gr. F6a/ AISI-410

Nut for eye bolt

2

13% Cr. S.S

ASTMA 182 Gr. F6a/ AISI-410

Pin

2

13% Cr. S.S

ASTMA 182 Gr. F6a/ AISI-410

Locking screw

1

M.S

IS: 226

Grub screw

1

M.S

IS: 226
