Bronze Union Cover Horizontal Lift Check Valve
Product Details:
X
Product Description
Description

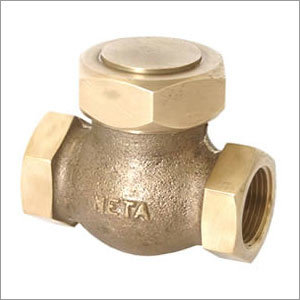

NETA Bronze Union Cover Horizontal Lift Check Valve
- With 13% Cr S.S. (AISI - 410) Working Parts
- Screwed Female Ends BSP Parallel Threads
Test Pressure : 500 PSIG Hyd.
| Part | Nos. | Material | Specification |
| Union nut | 1 | Gun metal | IS: 318 Gr. LTB2 |
| Cover | 1 | Gun metal | IS: 318 Gr. LTB2 |
| Check valve disc | 1 | 13% Cr. S.S | ASTMA 182 Gr. F6a/ AISI-410 |
| Body seat ring | 1 | 13% Cr. S.S | ASTMA 182 Gr. F6a/ AISI-410 |
| Body | 1 | Gun metal | IS: 318 Gr. LTB2 |
Dimension
| Nominal size | L ± 1.5 | H App. | T |
| 15 | 70 | 44 | 1/2 |
| 20 | 85 | 53 | 3/4 |
| 25 | 95 | 60 | 1 |
| 32 | 114 | 65 | 1.1/4 |
| 40 | 118 | 82 | 1.1/2 |
| 50 | 142 | 88 | 2 |
