Gun Metal Wheel Valve
Product Details:
X
Product Description
Description

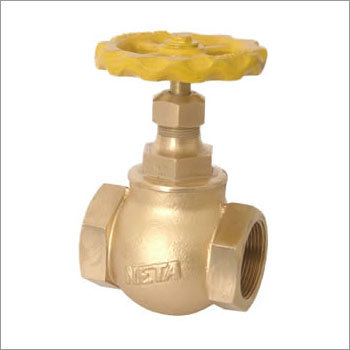

NETA Gun Metal Wheel Valve No.5
- Heavy Pattern
- Screwed in Bonnet
- Inside Screw
- Rising Stem
- Screwed Female BSP Parallel Ends
- Handwheel Operated
Hyd. Test Pressure : 35 Kgf/cm²
| Part | Nos. | Material | Specification |
| Hand wheel / Set screen | 1 | M.S | IS: 1367 |
| Washer | 1 | M.S | IS: 226 |
| Hand wheel | 1 | C.I | IS: 210 Gr. FG200 |
| Stem | 1 | Brass | IS: 318 Gr. FLB |
| Gland nut | 1 | Gun metal | IS: 318 Gr. LTB2 |
| Gland packing |
| Asbestos | IS: 4687 |
| Disc | 1 | Gun metal | IS: 318 Gr. LTB2 |
| Body | 1 | Gun metal | IS: 318 Gr. LTB2 |
| Gland | 1 | Gun metal | IS: 318 Gr. LTB2 |
| Bonnet | 1 | Gun metal | IS: 318 Gr. LTB2 |
| Disc nut | 1 | Gun metal | IS: 318 Gr. LTB2 |
Dimension
| Nominal size | L ± 1.5 | H App. | W App. | T |
| 15 | 45 | 76 | 48 | 1/2 |
| 20 | 54 | 82 | 54 | 3/4 |
| 25 | 60 | 85 | 60 | 1 |
| 32 | 70 | 95 | 75 | 1.1/4 |
| 40 | 75 | 104 | 75 | 1.1/2 |
| 50 | 87 | 121 | 82 | 2 |
| 65 | 100 | 145 | 108 | 2.1/2 |
| 80 | 123 | 172 | 130 | 3 |
| 100 | 156 | 200 | 130 | 4 |
