Bronze Horizontal Lift Check Valve
Product Details:
X
Product Description

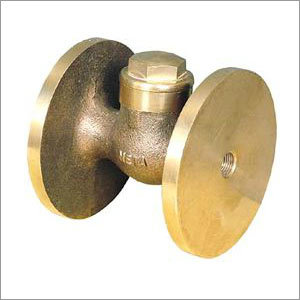

Bronze Horizontal Lift Check Valve
Description
NETA Bronze Horizontal Lift Check Valve
- Screwed in Cover with 13% Cr. Stainless Steel (ASTMA 182 Gr.F6a / AISI - 410) Trim
- Flanged BS-10 Table 'F' Ends
Max. Working Pressure : 150 PSIG
Max. Working Temperature : 220°C
Test Pressure : 300 PSIG Hyd.
Suitable for steam and liquid service.
| Part | Nos | Material | Specification |
| Cover | 1 | Bronze | BR 282[a][iv] Gr.B |
| Body | 1 | Bronze | BR 282[a][iv] Gr.B |
| Disc | 1 | 13% Cr./Ni S.S. | ASTMA 182 Gr.F6a / AISI - 410 |
| Body Seat Ring | 1 | 13% Cr./Ni S.S. | ASTMA 182 Gr.F6a / AISI - 410 |
| Nominal Size | L + 1.5 | H App. |
| 15 | 103 | 55 |
| 20 | 109 | 58 |
| 25 | 121 | 67 |
| 32 | 134.5 | 82 |
| 40 | 146.5 | 87 |
| 50 | 174.5 | 100 |
