Bronze Globe Steam Stop Valve
Product Details:
Product Description
Description

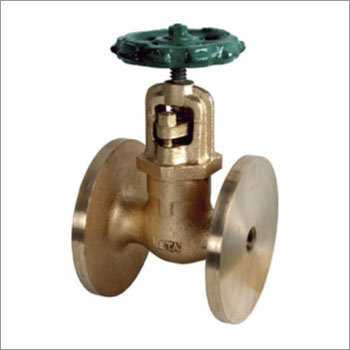

NETA Bronze Globe Steam Stop Valve
- Straight or Right Angle Type
- Outside Screw and Yoke Type
- Rising Stem with Back Seat
- Renewable 13% Cr. Stainless Steel (ASTMA 182 Gr.F6a / AISI - 410) Trim
- Flanged BS-10 Table 'H' Ends
- Hand wheel Operated
- Max. Working Pressure : 250 PSIG
- Max. Working Temperature : 220°C
- Test Pressure : 500 PSIG Hyd.
Suitable for steam and liquid service.
| Part | Nos. | Material | Specification |
| Washer | 1 | M.S | IS 226 |
| Hand wheel | 1 | C.I | IS 210 Gr. FG200 |
| Bonnet | 1 | Bronze | IBR 282 [a][iv] Gr. B |
| Stem | 1 | 13% Cr. S.S | ASTMA 182 Gr. F6a/ AISI-410 |
| Gland | 1 | Bronze | IBR 282 [a][iv] Gr. B |
| Packing |
| Graphited asbestos | - |
| Gasket | 1 | CAF | IS: 2712 |
| Disc | 1 | 13% Cr. S.S | ASTMA 182 Gr. F6a/ AISI-410 |
| Body seat ring | 1 | 13% Cr. S.S | ASTMA 182 Gr. F6a/ AISI-410 |
| Body | 1 | Bronze | IBR 282 [a][iv] Gr. B |
| Studs for gland | 2 | M.S | IS: 1367 |
| Nut for gland | 2 | M.S | IS: 1367 |
| Studs and nut for body | 4 each | M. S | IS: 1367 |
| Locking washer | 1 | 18/8% Cr./ Ni S.S | AISI- 304 |
| Check nut | 1 | Bronze | IBR 282 [a][iv] Gr. B |
Dimension
| Nominal size | L ± 1.5 | L ± 1.5 | H app. | H1 app. | W App |
| 15 | 73 | 106 | 108 | 120 | 90 |
| 20 | 76 | 112 | 135 | 150 | 100 |
| 25 | 83 | 124 | 160 | 180 | 100 |
| 32 | 89 | 138 | 180 | 210 | 125 |
| 40 | 102 | 150 | 215 | 235 | 150 |
| 50 | 108 | 197 | 255 | 260 | 150 |
| 65 | 120 | 227 | 260 | 267 | 160 |
| 80 | 135 | 263 | 285 | 323 | 175 |
