Gun Metal Horizontal Check Valve
Product Details:
X
Product Description
Description

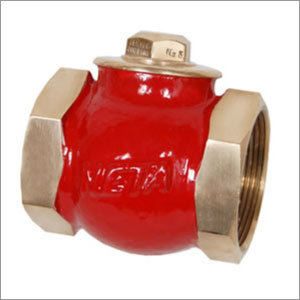

NETA Gun Metal Horizontal Check Valve No.3
- Standard Pattern
- Screwed in Cover
- Screwed Female BSP Parallel Ends
Hyd. Tested to 14 Kgf/cm²
| Part | Nos. | Material | Specification |
| Cover | 1 | Gun metal | IS: 318 Gr. LTB2 |
| Body | 1 | Gun metal | IS: 318 Gr. LTB2 |
| Disc | 1 | Gun metal | IS: 318 Gr. LTB2 |
Dimension
| Nominal size | L ± 1.5 | H. App. | T |
| 15 | 45 | 32 | 1/2 |
| 20 | 54 | 35 | 3/4 |
| 25 | 60 | 40 | 1 |
| 32 | 70 | 50 | 1.1/4 |
| 40 | 75 | 50 | 1.1/2 |
| 50 | 87 | 58 | 2 |
| 65 | 100 | 75 | 2./12 |
| 80 | 123 | 85 | 3 |
| 100 | 156 | 105 | 4 |
