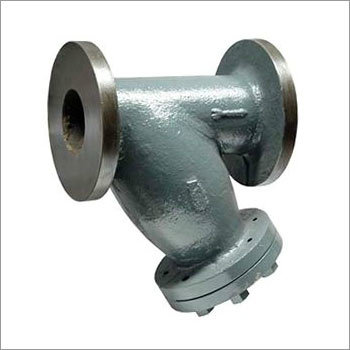

Cast Iron Y Type Strainer
Product Details:
X
Product Description
Description
NETA Cast Iron 'Y' Type Strainer
- With 18/ 8% Cr/Ni Stainless Steel Screen
- Flanged BS-10 Table 'F' Ends
- Max. Working Pressure : 150 PSIG
- Max. Working Temperature : 220°C
- Test Pressure : 300 PSIG Hyd.
Suitable for steam and liquid service.
| Part | Nos. | Material | Specification |
| Body | 1 | C.I | IS: 210 Gr. FG200 |
| Screen | 1 | 18/8% Cr./ Ni S.S | AISI-304 |
| Gasket | 1 | CAF | IS: 2712 |
| Cover | 1 | C.I | IS: 20 Gr. FG200 |
| Studs and nut | To suit | M.S | IS: 1367 |
| Plug | 1 | M.S | IS: 226 |
Dimension
| Nominal size | L ± 1.5 | W App |
| 15 | 105 | 52 |
| 20 | 120 | 70 |
| 25 | 162 | 120 |
| 32 | 185 | 145 |
| 40 | 207 | 160 |
| 50 | 210 | 200 |
| 65 | 250 | 228 |
| 80 | 270 | 260 |
| 100 | 380 | 284 |
| 125 | 416 | 382 |
| 150 | 450 | 394 |
| 200 | 520 | 502 |
