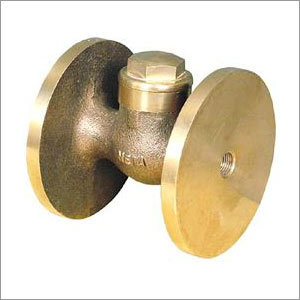

Bronze Horizontal Lift Check Valve
Product Details:
X
Product Description
Bronze Horizontal Lift Check Valve
Description
NETA Bronze Horizontal Lift Check Valve
- Screwed in Cover with 13% Cr. Stainless Steel (ASTMA 182 Gr.F6a / AISI - 410) Trim
- Flanged BS-10 Table 'H' Ends
Max. Working Pressure : 250 PSIG
Max. Working Temperature : 220°C
Test Pressure : 500 PSIG Hyd.
Suitable for steam and liquid service.
| Part | Nos | Material | Specification |
| Cover | 1 | Bronze | BR 282[a][iv] Gr.B |
| Body | 1 | Bronze | BR 282[a][iv] Gr.B |
| Disc | 1 | 13% Cr./Ni S.S. | ASTMA 182 Gr.F6a / AISI - 410 |
| Body Seat Ring | 1 | 13% Cr./Ni S.S. | ASTMA 182 Gr.F6a / AISI - 410 |
| Nominal Size | L + 1.5 | H App. |
| 15 | 106 | 55 |
| 20 | 112 | 58 |
| 25 | 124 | 67 |
| 32 | 137.5 | 82 |
| 40 | 149.5 | 87 |
| 50 | 177.5 | 100 |
