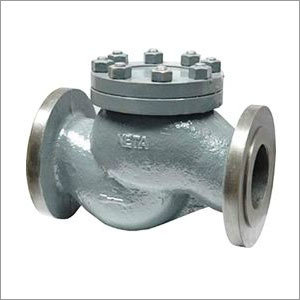

Cast Iron Horizontal Lift Check Valve
Product Details:
X
Product Description
Cast Iron Horizontal Lift Check Valve
Description
NETA Cast Iron Horizontal Lift Check Valve
- Straight Pattern
- BS:5153
- Bolted Cover
- 13% Cr. Stainless Steel (ASTMA 182 Gr.F6a / AISI - 410) Trim
- Flanged Ends to BS: 4504 Part 1 Table 16 / 11 / DIN 2533 PN16
- Raised Face Drilled / Undrilled
- Body Test Pressure : 26 Kg/cm² Gauge Hyd.
- Seat Test Pressure : 16 Kg/cm² Gauge Hyd.
Suitable for water, steam, oil and vapour service.
| Part | Nos. | Material | Specification |
| Cover | 1 | C.I | IS: 210 Gr FG200 |
| Studs and nuts | To | M.S | IS: 1367 |
| Gasket | 1 | CAF | IS: 2712 |
| Body | 1 | C.I | IS: 210 Gr. FG200 |
| Disc | 1 | C.I | IS: 210 Gr. FG200 |
| Disc ring | 1 | 13% Cr. S.S | ASTMA 182 Gr. F6a/ AISI-410 |
| Body seat ring | 1 | 13% Cr. S.S | ASTMA 182 Gr. F6a/ AISI-410 |
| Disc guide | 1 | C.I | IS: 210 Gr. FG200 |
| Locking pin | 1 | M.S | IS: 226 |
Dimension
| Nominal size | L | H |
| 15 | 130 | 62 |
| 20 | 150 | 70 |
| 25 | 160 | 90 |
| 32 | 180 | 90 |
| 40 | 200 | 100 |
| 50 | 230 | 120 |
| 65 | 290 | 138 |
| 80 | 310 | 165 |
| 100 | 350 | 175 |
| 125 | 400 | 205 |
| 150 | 400 | 215 |
| 200 | 600 | 270 |
