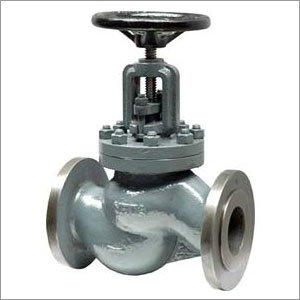

Cast Iron Globe Stop Valve
Product Details:
Product Description
Description
NETA Cast Iron Globe Stop Valve

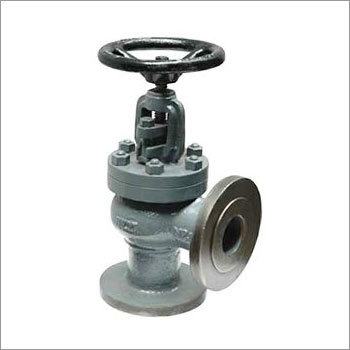

- Right Angle Pattern
- BS:5152
- Bolted Bonnet
- Outside Screw and Yoke Type
- 13% Cr. Stainless Steel (ASTMA 182 Gr.F6a / AISI - 410) Trim
- Flanged Ends to BS:4504 Part 1 Table 16 / 11 / DIN 2533 PN16
- Raised Face Drilled / Undrilled
- Body Test Pressure : 26 Kg/cm² Gauge Hyd.
- Seat Test Pressure : 16 Kg/cm² Gauge Hyd.
- Back Seat Test Pressure : 16 Kg/cm² Gauge Hyd.
Suitable for water, steam, oil and vapour service.
| Part | Nos. | Material | Specification |
| Nut | 1 | M.S | IS: 1367 |
| Washer | 1 | M.S | IS: 226 |
| Hand wheel | 1 | C.I | IS: 210 Gr. FG200 |
| Stem | 1 | 13% Cr. S.S | ASTMA 182 Gr. F6a/ AISI-410 |
| Yoke bush | 1 | 13% Cr. S.S | ASTMA 182 Gr. F6a/ AISI-410 |
| Gland | 1 | C.I | IS: 210 Gr. Fr200 |
| Packing |
| Graphited asbestos |
|
| Bonnet | 1 | C.I | IS: 200 Gr FG 200 |
| Gasket | 1 | CAF | IS: 2712 |
| Locking washer / screw | 1 | S.S | AISI-304 |
| Disc ring | 1 | 13% Cr. S.S | ASTMA 182 Gr. F6a/ AISI-410 |
| Body | 1 | C.I | IS: 210 Gr FG200 |
| Studs and nuts | To | M.S | IS: 1367 |
| Disc nut | 1 | 13% Cr. S.S | ASTMA 182 Gr. F6a/ AISI-410 |
| Disc | 1 | C.I | IS: 210 Gr FG200 |
| Body seat ring | 1 | 13% Cr. S.S | ASTMA 182 Gr. F6a/ AISI-410 |
| Gland bolts and nuts | 2 Each | M.S | IS: 1367 |
Dimension
| Nominal size | L | H | W |
| 15 | 90 | 150 | 100 |
| 20 | 95 | 152 | 100 |
| 25 | 100 | 165 | 100 |
| 32 | 105 | 180 | 160 |
| 40 | 115 | 205 | 160 |
| 50 | 125 | 240 | 175 |
| 65 | 145 | 256 | 200 |
| 80 | 155 | 314 | 200 |
| 100 | 175 | 330 | 250 |
| 125 | 200 | 370 | 250 |
| 150 | 225 | 415 | 320 |
| 200 | 275 | 425 | 400 |
