Bronze Horizontal Lift Check Valve
Product Details:
X
Product Description

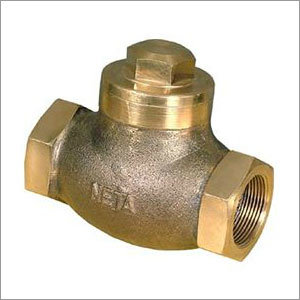

Bronze Horizontal Lift Check Valve
Description
NETA Bronze Horizontal Lift Check Valve
- Screwed in Cover with 13% Cr. Stainless Steel (ASTMA 182 Gr.F6a / AISI - 410) Trim
- Screwed Female Ends BSP Parallel Threads
Max. Working Pressure : 250 PSIG
Max. Working Temperature : 220°C
Test Pressure : 500 PSIG Hyd.
Suitable for steam and liquid service.
| Part | Nos | Material | Specification |
| Cover | 1 | Bronze | BR 282[a][iv] Gr.B |
| Body | 1 | Bronze | BR 282[a][iv] Gr.B |
| Disc | 1 | 13% Cr./Ni S.S. | ASTMA 182 Gr.F6a / AISI - 410 |
| Body Seat Ring | 1 | 13% Cr./Ni S.S. | ASTMA 182 Gr.F6a / AISI - 410 |
| Nominal Size | L + 1.5 | H App. | T |
| 15 | 130 | 95 | 1/2 |
| 20 | 133 | 114 | 3/4 |
| 25 | 155 | 122 | 1 |
| 32 | 184 | 149 | 1.1/4 |
| 40 | 190.5 | 152 | 1.1/2 |
| 50 | 219 | 190 | 2 |
